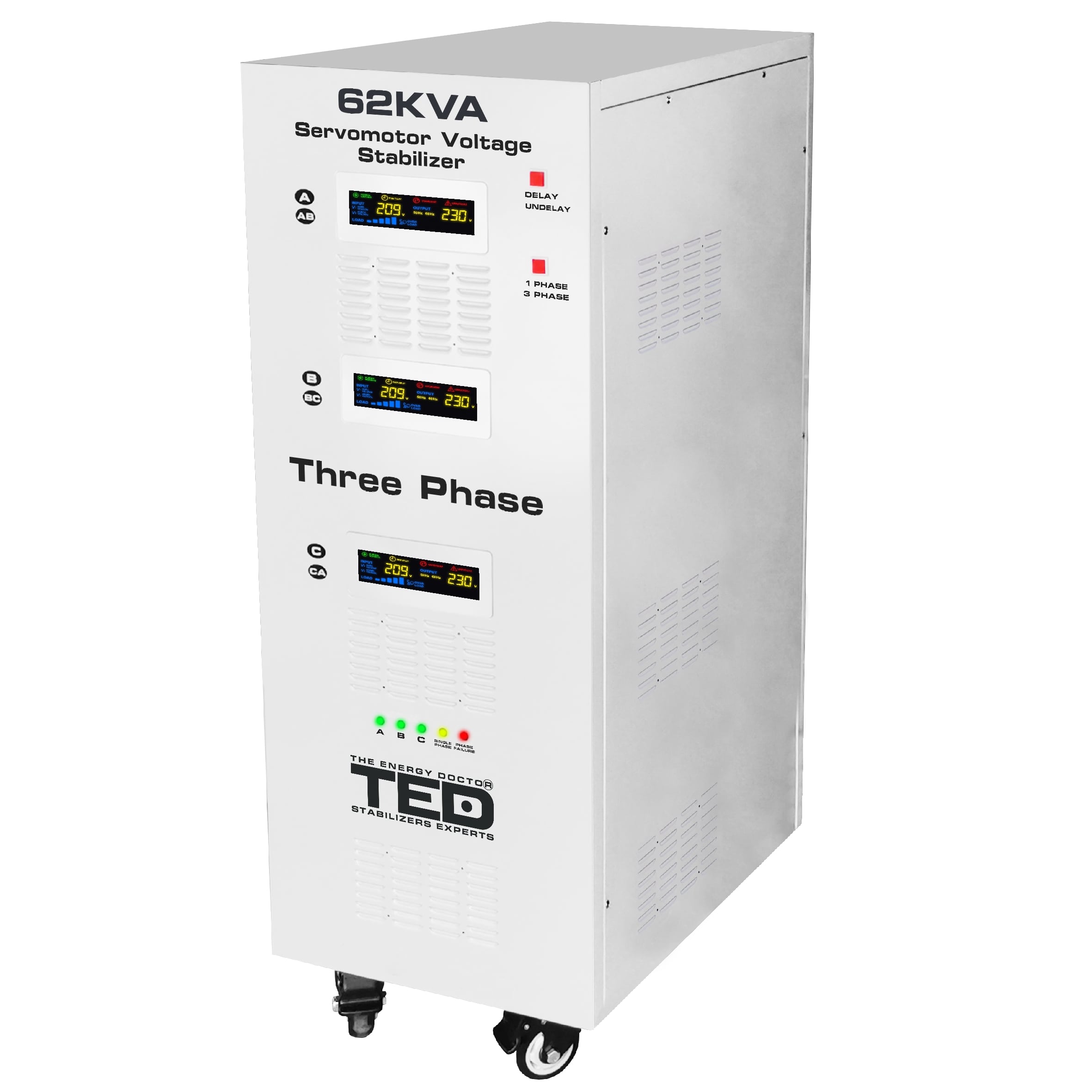

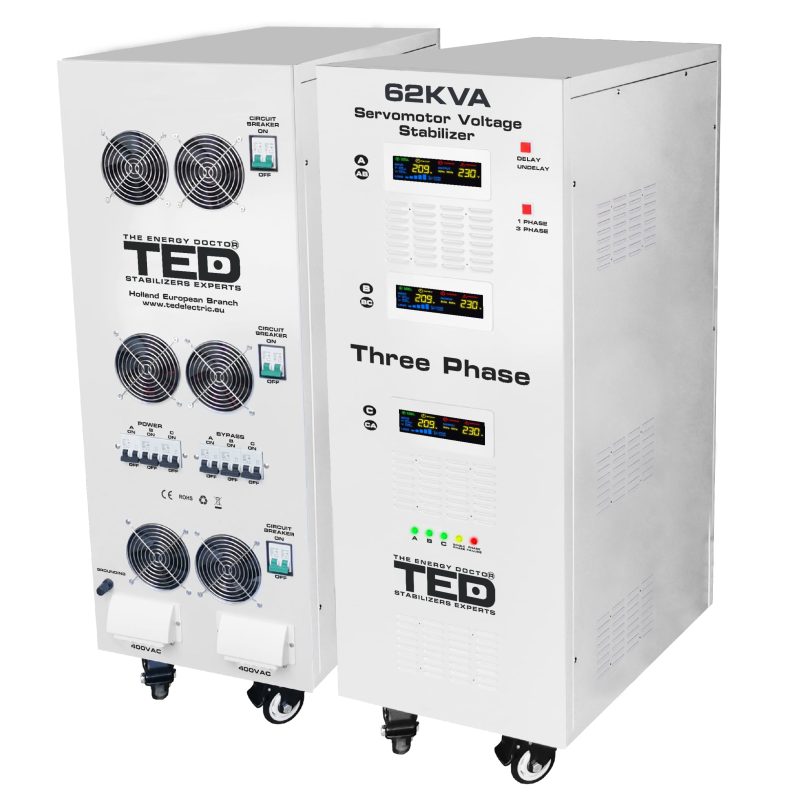

62kVA 48kW 3-Phase Servomotor Voltage Stabilizer – LCD Display – Terminal Block – TED Electric
Three phase voltage regulator / stabilizer using servomotor technology for high precision & wide voltage range control. Ideal for large applications. It provides safe 400V output & protects any electronic equipment from voltage faults & spikes. Input / output terminal block for connections. 3 intuitive LCD display (1 for each phase) conveys essential parameters. Built-in wheels with braking system for easy maneuvering.
Product code: TED000217
Technical Specification
| Power | 62 kVA / 48 kW |
|---|---|
| Input Voltage / Frequency | 242-520 VAC / 50-60 Hz |
| Output Voltage / Frequency | 400 VAC / 50 Hz |
| Output Precision | 1-3% |
| Output Connectors | 1 x Terminal Block |
| Wave Form | Pure Sine Wave |
| Dimensions (L x W x H) | 705 x 390 x 1095 mm |
| Weight | 168 kg |
| Noise Level | < 40 dB |
Application & Use
SVC servomotor voltage stabilizers are ideal for specialized sensitive electronic equipment in fields that require precise output and high quality control: data centers, medical facilities, telecommunications, manufacturing processes and many others.
Audio-Visual Equipment
CNCs, Robotics
MRI, CT scanners
HVAC Systems
Komplet 6 Protection
Komplet 6 is TED Electric's safety standard. We offer extensive protection for our products & your electronic devices
Over Voltage
Under Voltage
Overload
Overheating
Short Circuit
