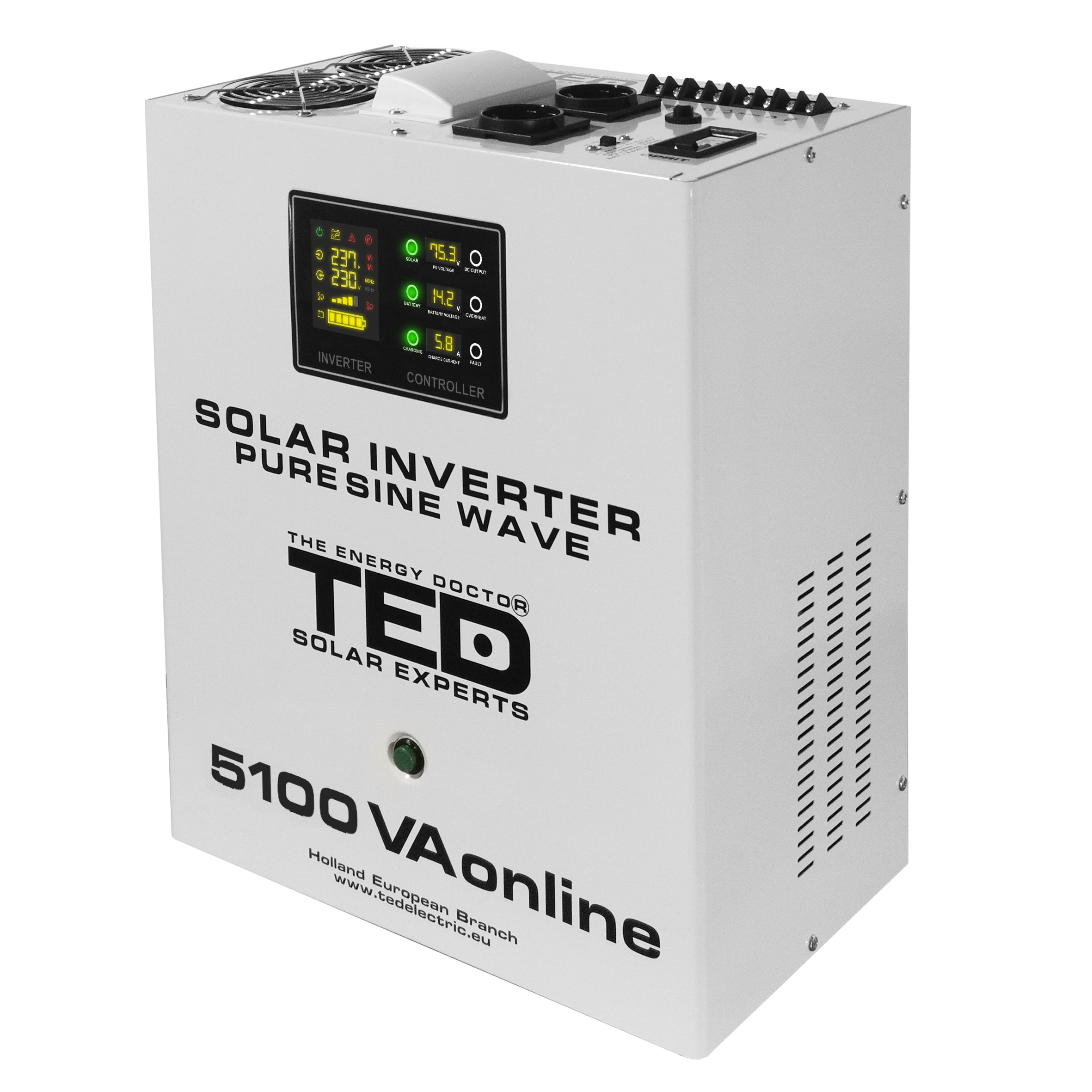

5100VA 3500W Solar Inverter with MPPT – Pure Sine Wave – 3 Outputs – TED Electric

Solar inverter for converting DC coming from solar photo-voltaic panels to standard 230V AC to supply power for consumer electronics.

Product code: TED003898

Technical Specification

Power

5100 VA / 3500 W

Output Voltage / Frequency

230 V / 50 Hz or 60 Hz (adaptable)

Wave Form

Pure Sine Wave

Output Connectors

2 x Schuko + 1 x Terminal Block

Transfer Time

< 4 ms

Overload Capacity

110-150% – 30s stop / 150-250% – 15s stop / >250% – 0s stop

Mains Loading Current

10 A

Max. loading current (PV)

60 A

Voltage Range (PV)

60-130 VDC

Dimensions (L x W x H)

422 x 352 x 211 mm

Weight

21.5 kg

Application & Use

Solar inverters play a crucial role in solar power systems by converting the direct current (DC) generated by solar panels into alternating current (AC), for powering homes, businesses, and the power grid.

Office Equipment

residential-buildings

Commercial Spaces

Household Electronics

off-the-grid

Remote Locations
