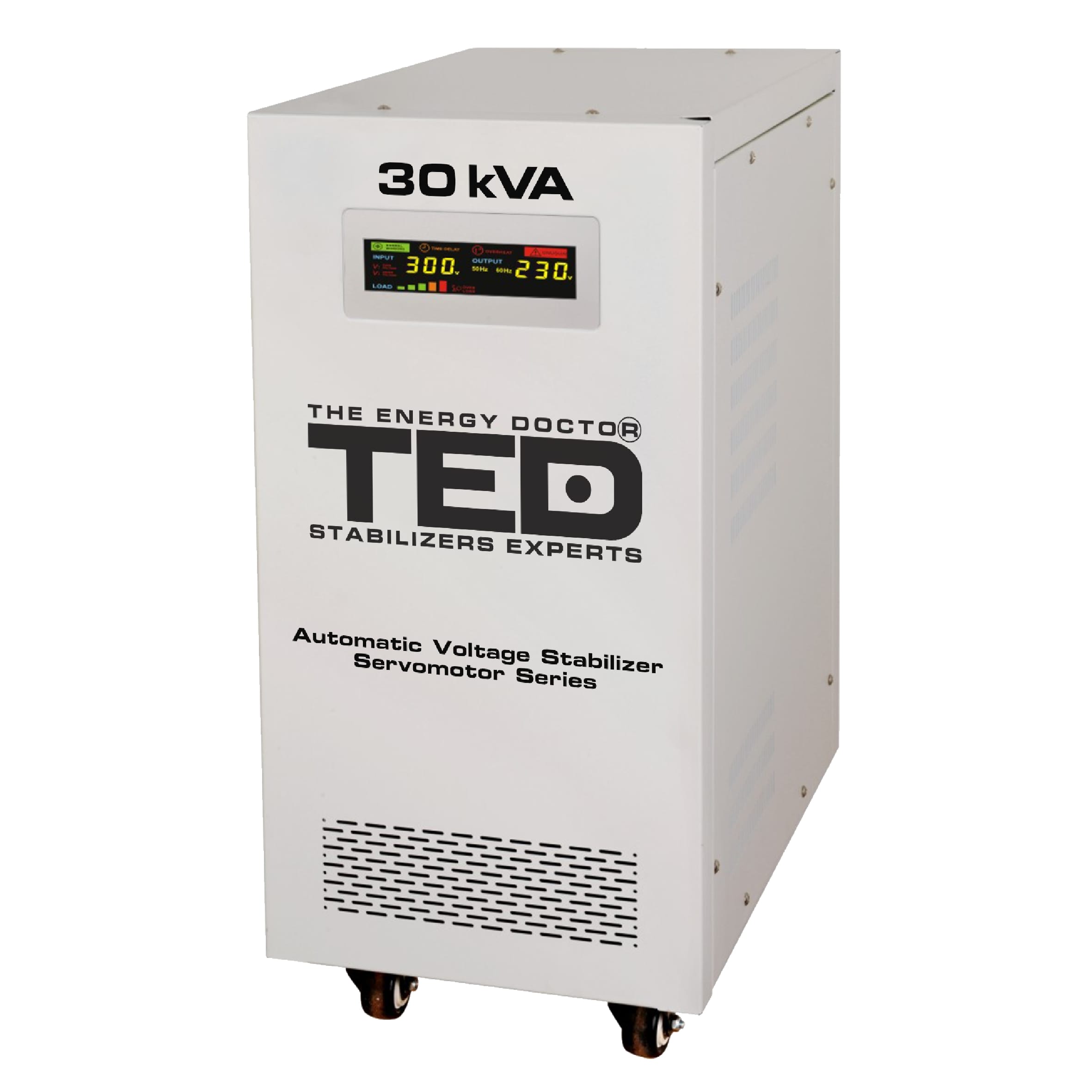

30kVA 24kW Servomotor Voltage Stabilizer – LCD Display – Terminal Block – TED Electric
Single phase voltage regulator / stabilizer using servomotor technology for accurate stabilization & wide voltage range control. It provides 230V output & protects any electronic equipment from voltage faults & spikes. MCU controlled circuit & pure copper windings ensures maximum reliability. The output is received through a customizable termnial block. Intuitive LCD display conveys essential parameters. Built-in wheels with braking system for easy maneuvering.
Product code: TED001962
Technical Specification
| Power | 30 kVA / 24 kW |
|---|---|
| Input Voltage / Frequency | 140-300 VAC / 45-65 Hz |
| Output Voltage / Frequency | 230 VAC / 50 Hz |
| Output Precision | 1-3% |
| Output Connectors | 1 x Terminal Block |
| Wave Form | Pure Sine Wave |
| Dimensions (L x W x H) | 480 x 300 x 640 mm |
| Weight | 70 kg |
| Noise Level | < 40 dB |
Application & Use
SVC servomotor voltage stabilizers are ideal for specialized sensitive electronic equipment in fields that require precise output and high quality control: data centers, medical facilities, telecommunications, manufacturing processes and many others.
Audio-Visual Equipment
CNCs, Robotics
MRI, CT scanners
HVAC Systems
Komplet 6 Protection
Komplet 6 is TED Electric's safety standard. We offer extensive protection for our products & your electronic devices
Over Voltage
Under Voltage
Overload
Overheating
Short Circuit
