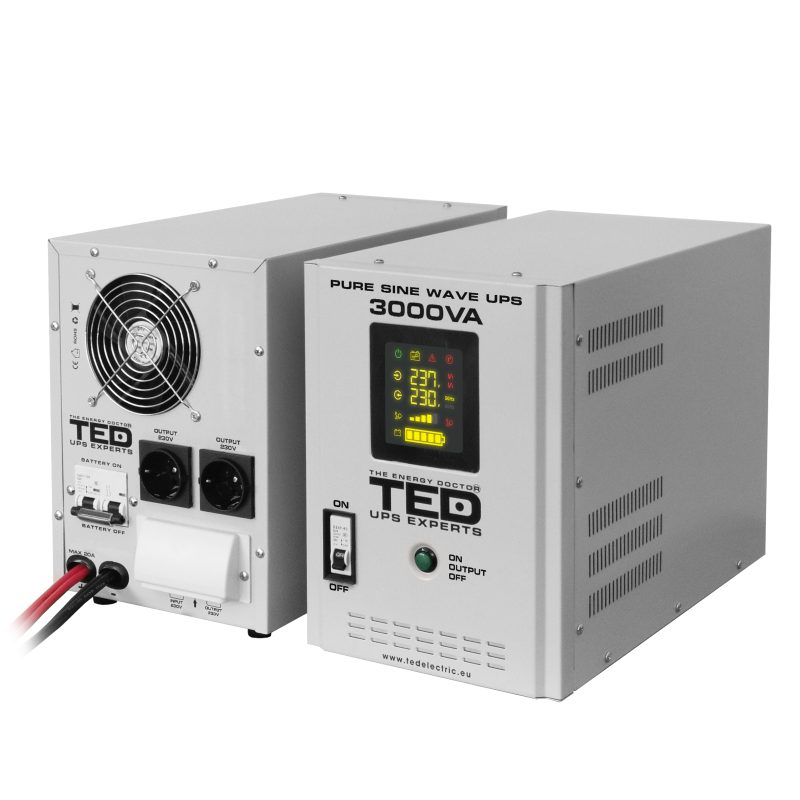

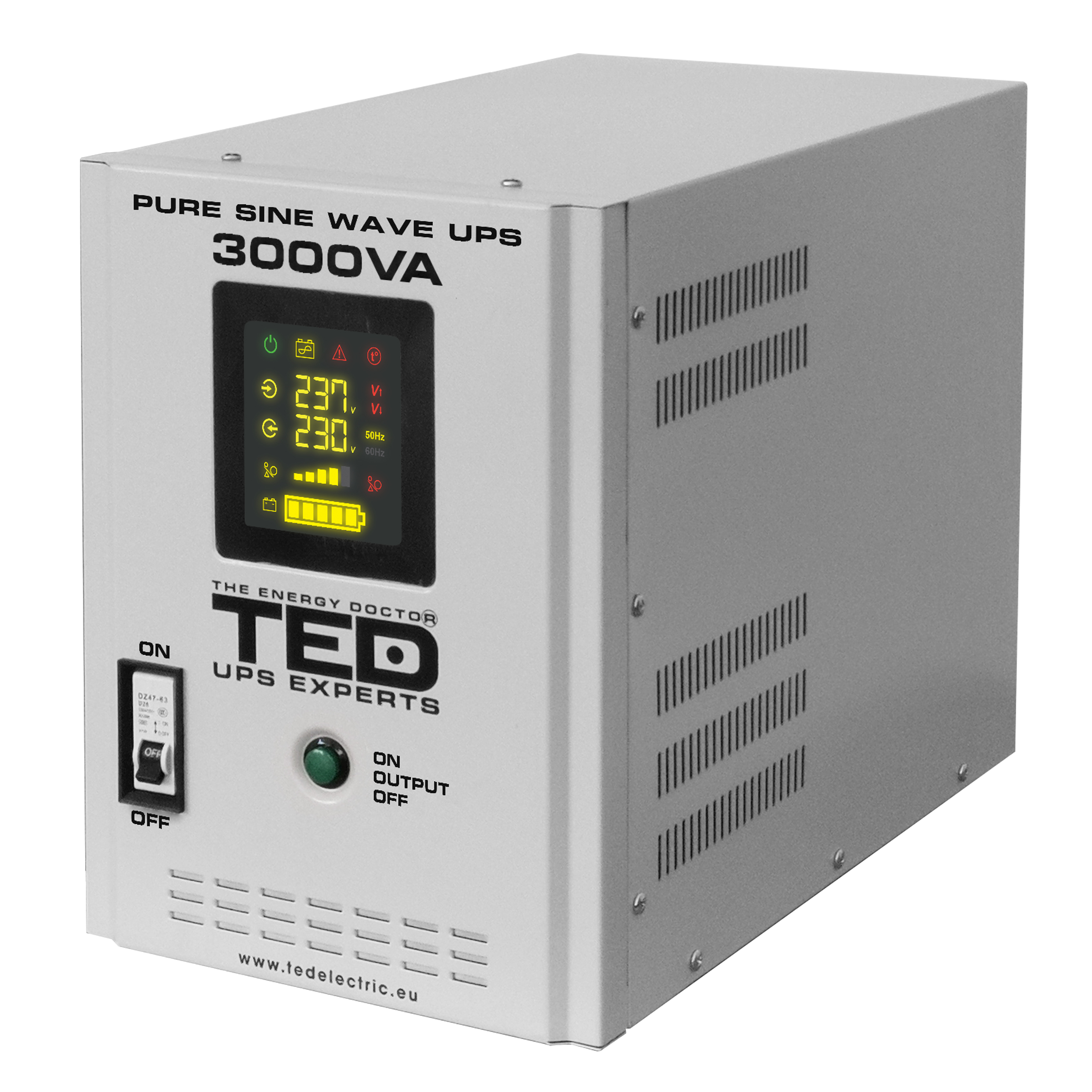

3000VA 2100W UPS Extended Runtime for Gas Boilers – LCD Display – 3 x Outputs – TED Electric
Single phase UPS specifically designed for gas boilers with extended runtime & external batteries with automatic recharge. It provides stable (integrated AVR) 230V output though 2 Schuko sockets. Internal heavy duty copper transformer & microprocessor drives high reliability over time.
Product code: TED001672
Technical Specification
| Power | 3000 VA / 2100 W |
|---|---|
| Input Voltage / Frequency | 140-290 VAC / 45-65 Hz |
| Output Voltage / Frequency | 230 VAC / 50 Hz |
| Output Connectors | 2 x Schuko + 1 x Terminal Block |
| Wave Form | Pure Sine Wave |
| Power Factor / Transfer Time | 0.85 / < 4 ms |
| Battery Type | 4 x 12 V (external) |
| Dimensions (L x W x H) | 219 x 455 x 297 mm |
| Weight | 20 kg |
| Noise Level | < 56 dB |
| Remote Management | No |
Application & Use
Extended Runtime UPS are specifically built for gas boilers. However, they can be used in a multitude of applications around the house.
Gas Boilers
Water Pumps
Household Electronics
Fuel Generator Compatible
Komplet 6 Protection
Komplet 6 is TED Electric's safety standard. We offer extensive protection for our products & your electronic devices
Over Voltage
Under Voltage
Overload
Overheating
Short Circuit
