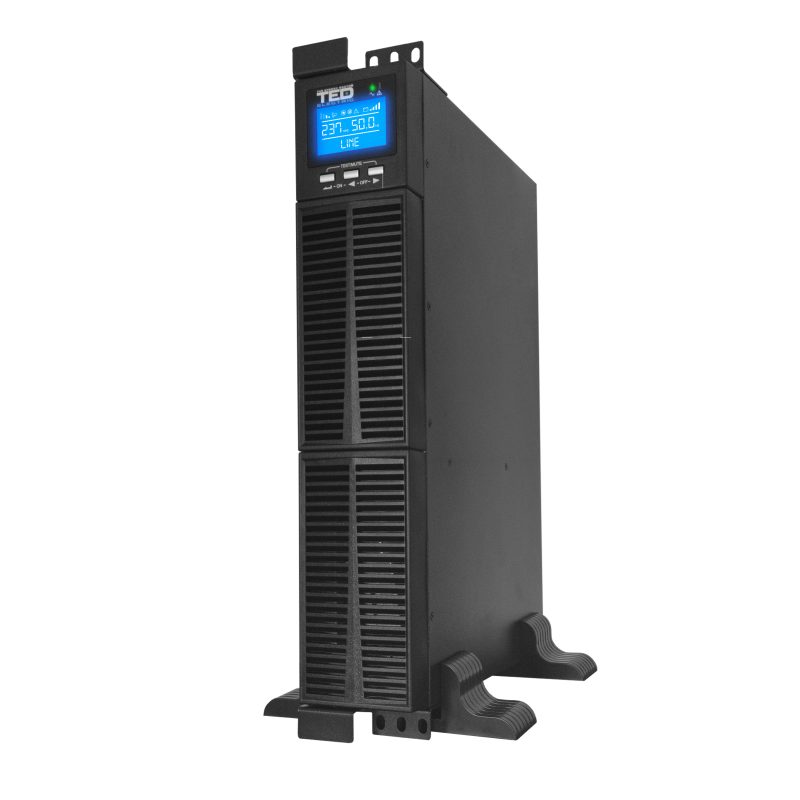

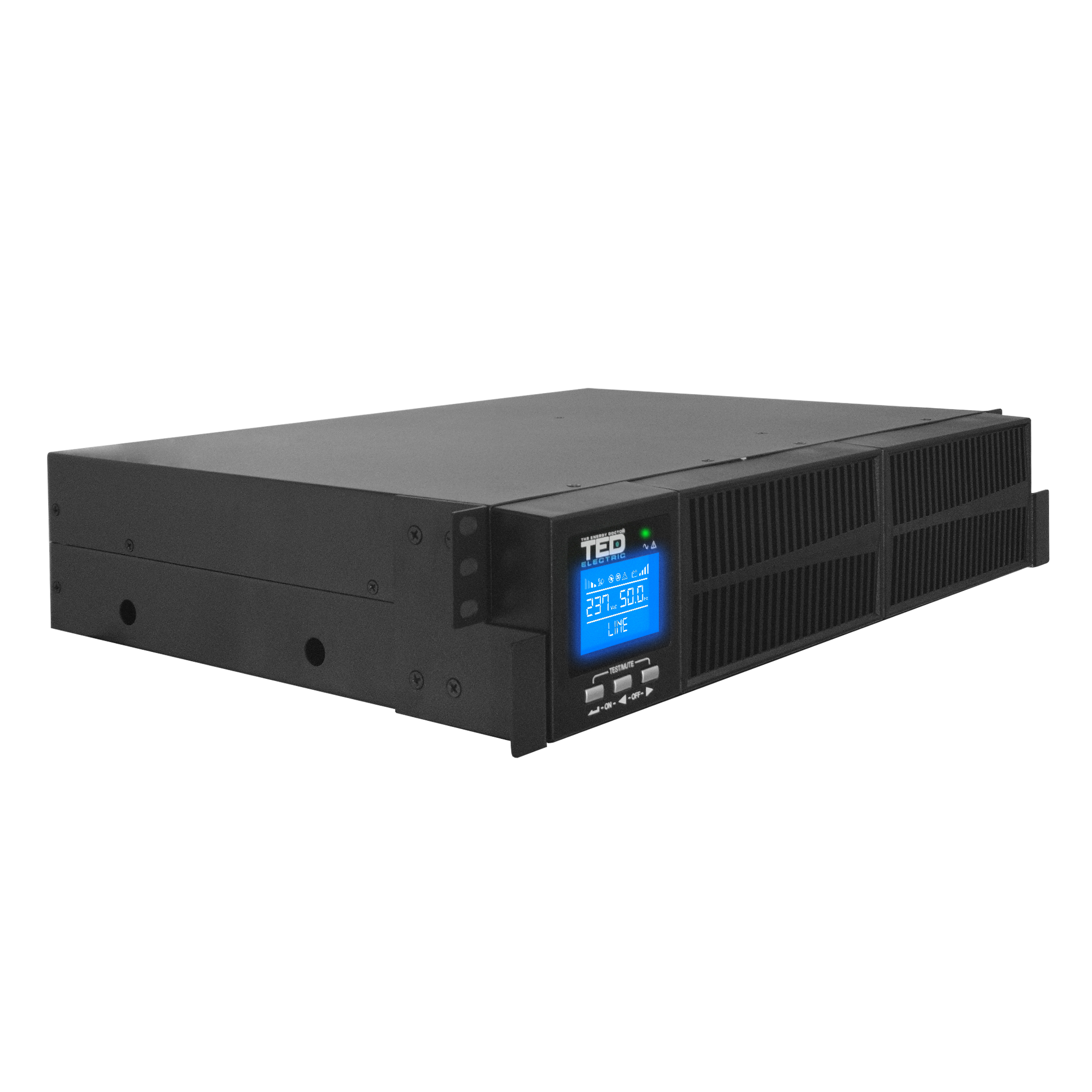

2000VA 1800W UPS Online Rack / Tower – LCD Display – 5 x Outputs – TED Electric
Online UPS provides superior protection & back-up time using double conversion technology, built for sensitive electronics in case of power loss or voltage fluctuations using. Horizontal (rack) / vertical (tower) position mounting options. It provides stable (integrated AVR) clean 230v output through Schuko + IEC sockets. It has an intuitive interface: LCD display + navigation buttons. Remote management via USB for Windows, Linux, Unix & BSD. Other features include Cold Start Function, Auto restart (while AC is recovering), Smart Battery Management + Off-Mode Charging.
Product code: TED004055
Technical Specification
| Power | 2000 VA / 1800 W |
|---|---|
| Input Voltage / Frequency | 180-290 VAC / 45-65 Hz |
| Output Voltage / Frequency | 230 VAC / 50 Hz |

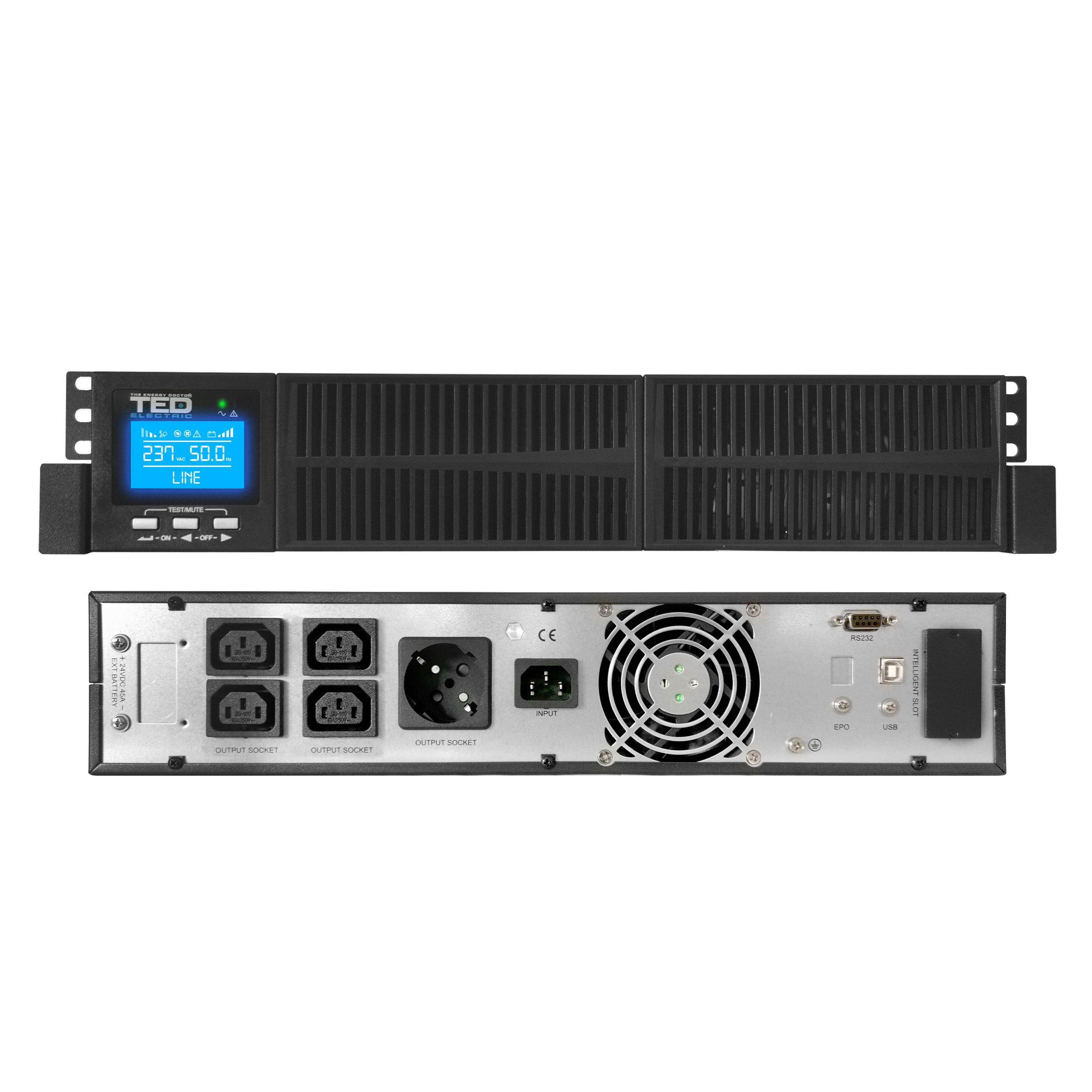

| Output Connectors | 1 x Schuko + 4 x IEC |
| Wave Form | Pure Sine Wave |
| Power Factor / Transfer Time | > 0.99 / 0 ms |
| Battery Type | 4 x 12 V / 9 Ah |
| Back-up Time (100% load) | 10 min. |
| Dimensions (L x W x H) | 440 x 528 x 88 mm (2U) |
| Weight | 21.9 kg |
| Noise Level | < 50 dB |
| Remote Management | Yes |
Application & Use
Online UPS offer the ultimate protection for mission critical professional electronic equipment. Ideal for online services, data centers communication & broadcasting, & financial institutions.
Office Equipment
Servers & Networks
Audio-Video Equipment
Manufacturing Tools
Komplet 6 Protection
Komplet 6 is TED Electric's safety standard. We offer extensive protection for our products & your electronic devices
Over Voltage
Under Voltage
Overload
Overheating
Short Circuit
