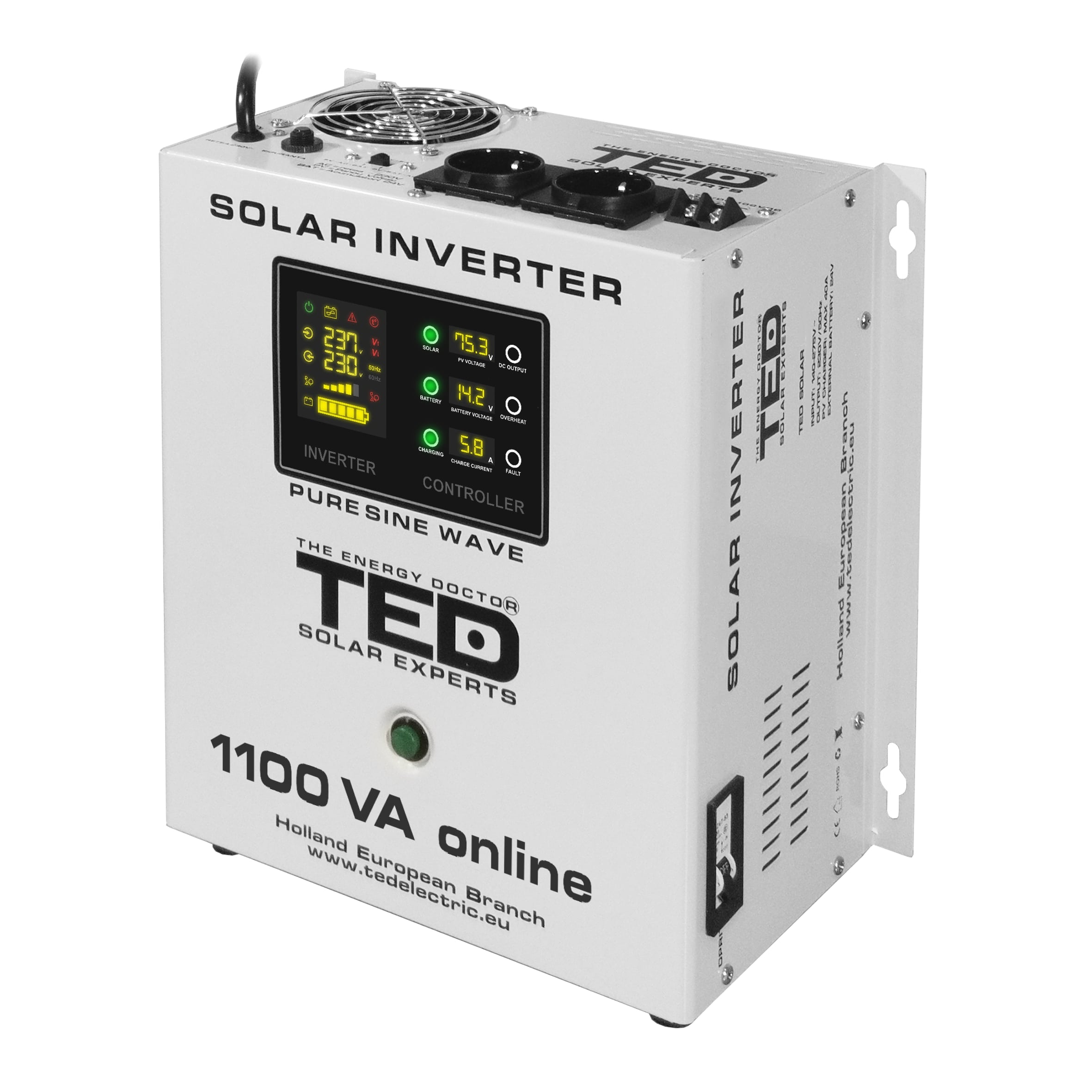

1100VA 700W Solar Inverter with MPPT – Pure Sine Wave – 2 Outputs – TED Electric
Solar inverter for converting DC coming from solar photo-voltaic panels to standard 230V AC to supply power for consumer electronics.
Product code: TED000279
Technical Specification
| Power | 1100 VA / 700 W |
|---|---|
| Output Voltage / Frequency | 230 V / 50 Hz or 60 Hz (adaptable) |
| Wave Form | Pure Sine Wave |
| Output Connectors | 2 x Schuko |
| Transfer Time | < 4 ms |
| Overload Capacity | 110-150% – 30s stop / 150-250% – 15s stop / >250% – 0s stop |
| Mains Loading Current | 10 A |
| Max. loading current (PV) | 40 A |
| Voltage Range (PV) | 30-100 VDC |
| Dimensions (L x W x H) | 312 x 310 x 167 mm |
| Weight | 8 kg |
Application & Use
Solar inverters play a crucial role in solar power systems by converting the direct current (DC) generated by solar panels into alternating current (AC), for powering homes, businesses, and the power grid.
Office Equipment
Commercial Spaces
Household Electronics
